Vertical protection dual infrared detector

Name: Vertical protection dual infrared detector
Brand: JSUS
Price: 1 USD

Quality Vertical protection dual infrared detector for sale

Place of Origin : China

Brand Name : JSUS

Certification : CE&ROHS

Model Number : JS-RD61

MOQ : 200pcs

Price : USD FOB SHENZHEN

Delivery Time : 5-7days

Payment Terms : L/C,T/T,Paypal

Supply Ability : 100,000sets/month

Contact Now

Model:JS-RD61

Product Features:

Protection range: 6.6 meters x 4.5 meters wide (used in anti-theft system), 2.1 meters x 1.5 meters wide (used in access control systems)

Beam Angle: Vertical 00 or 100, the lens adjustable

Metal shields: Anti RF interference

Alarm Display: Green LED lights

Alarm Time :0.5-25 seconds adjustable

Alarm Output: normally closed or normally open, 28Vdc 0.15A

Tamper: Normally closed, open the cover is removed, 0.15 *, 28 * dc

Humidity: 95%

Weight: 85 g

Size: 114 × 93x35mm (W x H x D)

JS－460

Sensor

Low-noise high sensitivity dual rectangle infrared

Processor

Two automatic pulse, automatic temperature compensation

Detectionspeed

0.2－7m/s

Sensitivity

Two adjustable

Operating Temperature

－10℃-50℃

Power Input

9－16Vdc / 20-27Vdc,18mA

Lens

Fresnel lenses vertical protection

The scope of protection

6.6 meters x 4.5 meters wide (used in anti-theft system)

2.1 meters x 1.5 meters wide (used in access control systems)

Beam angle

Vertical 00 or 100, the lens adjustable

Metal shield

RF Immunity

Alarm Display

Green LED lights

Alarm Time

0.5-25Seconds adjustable

Alarm Output

Normally closed or normally open, 28Vdc 0.15A

Tamper switch

Normally closed, open the cover is removed, 0.15 *, 28 * dc

Humidity 95%

Weight 85g

Size 114×93x35mm

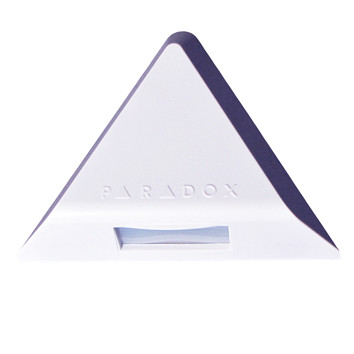

Vertical protection dual infrared detector Images
